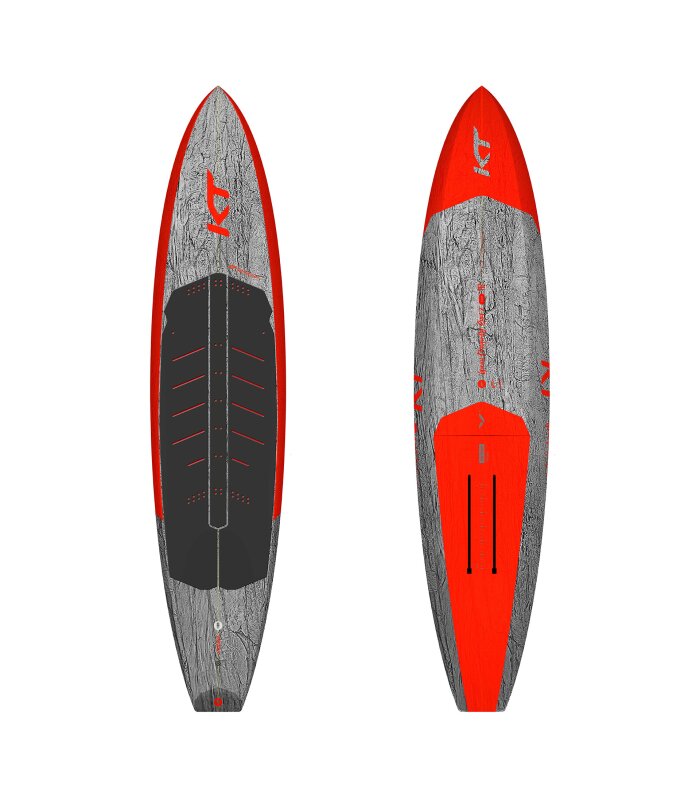

KT - Ginxu Dragonfly Surf 2 Carbon

Beschreibung

Our shortest and most compact Dragonfly, ideal for the surf, short-period windswell, and quick-turning performance. With a new volume distribution, evening out the nose and tail, the Surf 2 balances paddle power, takeoff, and easy handling across downwind SUP foiling, prone foiling, parawing and light-wind winging.

This latest iteration fine-tunes each size individually, ensuring it as the go-to for riders looking for the surfiest all around Dragonfly, designed to fit perfectly in shorter period conditions.

While sizing always depends on weight and experience level, the larger sizes of the Surf 2 are our most accessible and stability oriented Dragonflies, catering to beginners just as much as the smaller sizes cater to lighter or advanced performance oriented riders.

Cunstruction.

Full Sandwich: Available in the 105L size, delivering maximum stiffness, durability, and lightweight performance. 20% lighter and considerably stronger than standard carbon construction. Extra-lightweight EPS core wrapped in a full carbon high-density exo-skeleton. Full biaxial and unidirectional carbon high-density sandwich.

Dual Fusion Core: Available in 110–135L sizes, balancing weight and durability. 10–15% lighter and stronger than previous builds, with a more responsive feel. Biaxial Carbon with Unidirectional carbon patching, and glass reinforcements throughout. Balance of stiffness and strength.

Shape.

Disciplines: Short period river or lake runs, Parawing, Light-wind wing, or everyday SUP.

Stability: Progressive width through size range provides excellent directional stability across a range of conditions, with improved tracking and control compared to previous Surf designs.

Takeoff: Excels at bounce-style takeoffs in surf or shorter period swells.

Bottom

Ginxu Double Displacement Hull. Flatter displacement hull with subtle double concave creates an ideal balance between stability and low-end acceleration.

Rocker

Precisely engineered by Keith Teboul, Kane de Wilde, and Adam Lewis for optimal entry angle and subtle tail rocker to ensure a balanced, even footed feel, both in the water and in the air. Consistent performance across all sizes.

Outline

Shorter length with progressive width across size range increase provides stability without sacrificing maneuverability. The width increases significantly in larger sizes to improve stability for beginners and heavier riders.

Rails

Almond-shaped rails through the nose transition to boxier rails at the standing area for control and responsive direction changes.

Nose

Foiled aero arrow nose reduces windage and improves cross & upwind capability. More even volume distribution between nose and tail than previous generations.

Tail

Tri-plane tail with soft rails transitioning into an aerodynamic tail shape. Enhances water release and flow over the tail in choppy conditions.

Weitere Spezifikationen

Ginxu Dragonfly Surf 2. Surf, Downwind Sup, Parawing, Lightwind Wing, Short Period.

Volume L	Length Ft	Width In	Thickness In / Cm	Weight Kg	Vent	Handle	Straps	Color pms	Fin Boxes	Track Position
96	6'9	18.50	6.1 / 15.49	4.8	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
101	6'11	19	6.1 / 15.49	5.0	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
106	7'2	19.25	6.1 / 15.49	5.2	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
112	7'6	19.25	6.1 / 15.49	5.4	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
120	7'10	19.50	6.2 / 15.74	5.7	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
130	8'2	20	6.3 / 16	6.0	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
148	8'10	20.50	6.45 / 16.38	6.5	Yes	No	No	877 & Custom Red	Foil Track 14"	TBA
